3D Printer Ball Screw
The 3D printer ball screw is an important technology used to create intricate and detailed designs with precision and accuracy in the printing area. The ball screw in a 3D printer translates rotational motion into linear motion, resulting in smoother and more precise movement of the printing head.
Description
1.Product introduction
The 3D printer ball screw is an important technology used to create intricate and detailed designs with precision and accuracy in the printing area. The ball screw in a 3D printer translates rotational motion into linear motion, resulting in smoother and more precise movement of the printing head.
2.Product specification
Xingborui factory creates 3D printer ball screws mainly for SFK and SFU series for small diameters. The most widely used items are SFK0601, SFK0801, SFK0802, SFK1002, SFK1004, SFU1204, SFU1605, etc. The diameter and pitch depend on the 3D printer's size and speed demands.
3.Ball screw Specification
|
Product Name |
3D printer ball screw |
|
Application |
3d printer |
|
Ball screw series |
SFK series, SFU series |
|
Precision type |
C5 grinding ball screw or C7 rolled ball screw |
|
C5 accuracy |
18 μm in 300mm |
|
C7 accuracy |
50 μm in 300mm |
|
Difference between SFK and SFU series |
SFK with 4 mounting holes,while SFU with 6 mounting holes |
|
Difference for C5 and C7 |
C7 has lower precision and an economic price, while C5 has higher precision and a more expensive price. |
|
Surface treatment |
Polish,Chrome plated or black coated.If you have other demands,welcome to discuss with us. |
|
Delivery time |
Normally one week for C7 precision,and 7-10 days for C5 precision ball screw. |
|

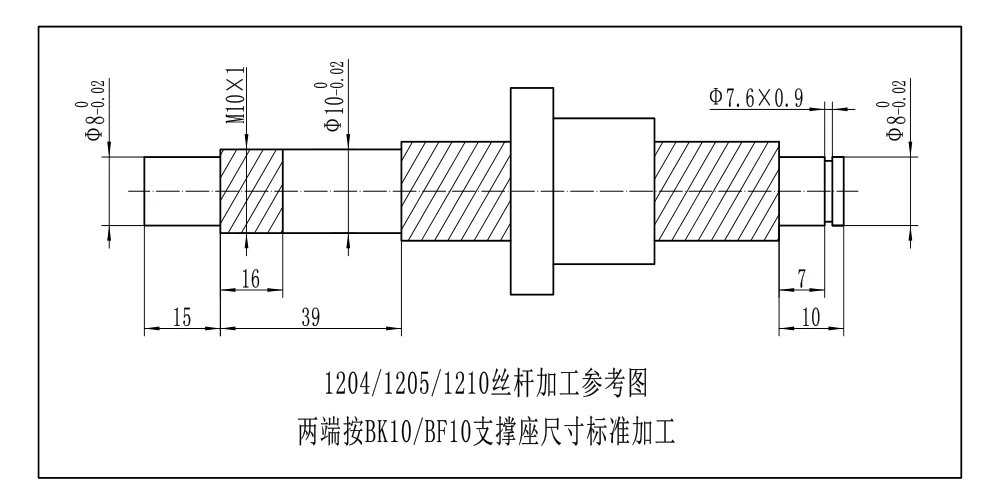

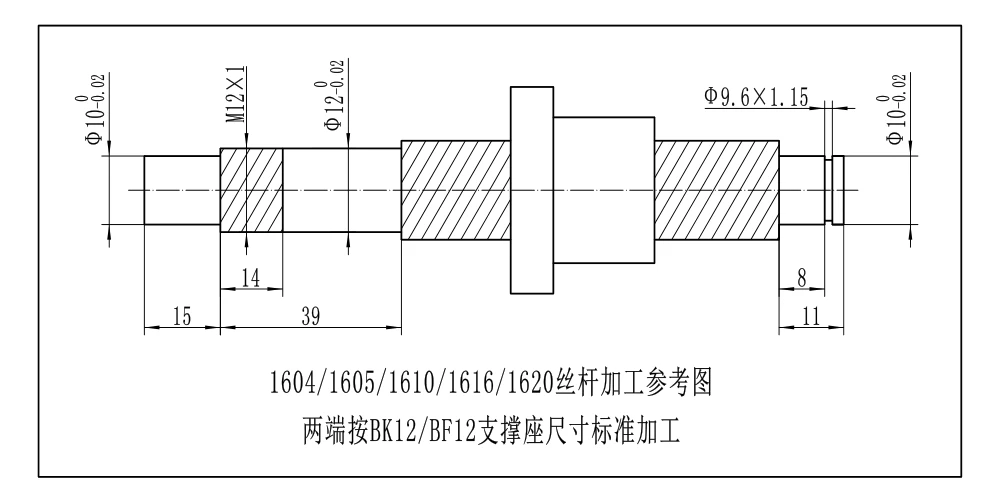

Drawings service |
We can provide drawings after got customers demands. |
|
Available drawings type |
CAD, PDF, STEP or picture |
|
Payment term |
100% payment before production |
|
Factory visiting |
We welcome customers to visit our factory. |
4.Workshop and office
5.Package
6.FAQ
6.1 Q: How to select ball screw items from the SFK series and SFU series?
A: The SFK series ball screws have four mounting holes and smaller diameters, such as 6mm, 8mm, and 10mm, while the SFU series have six holes and bigger diameters, such as 12mm, 16mm, and 20mm.
6.2Q: Which one is better for C5 grinding ball screw and C7 rolled ball screw?
A: C5 grinding ball screw is better for it with higher precision.
6.3 Q: What do I need to provide to select a suitable ball screw?
A: It is necessary to tell us the load capacity, stroke length, and speed in order to recommend suitable items for you.
6.4 Q: What kind of products does your factory provide?
A: Our factory can provide ball screws and nuts, linear guides and block bearings, shafts and bearings.
