Cnc Machine Ball Screw

CNC machine ball screw is composed of ball screw, nut, steel ball, preloaded sheet, reverse device, and dustproof device. It is with high accuracy positioning, high precision locating, high speed operation, so can use in normal CNC machines and CNC centers in industry area.

Send Inquiry

Description

1. Product introduction

As CNC machine need high precision ball screw, so normally the mostly widely use type is grinding ball screw which precision rate is C5 or C7. If the grinding ball screw rod have stock, it needs about 5-10 days to send goods. If no stock it needs about 10-30 days for production.

2. Product specification

Our CNC machine ball screw sizes are the same according to Taiwan sizes. The available items now have SFU1204-4, SFU1605-4, SFU2005-4, SFU2505-4, SFU2510-4, SFU3205-4, SFU3210-4, SFU4005-4, SFU4010-4, SFU5005-4, SFU5010-4, SFU6310-4, SFU6320-4, SFU8010-4, SFU8020-4. Meanwhile the double nuts series DFU is available like DFU1605, DFU2005, DFU2010, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5005, DFU5010, DFU6310, DFU6320, DFU8010, DFU8020.

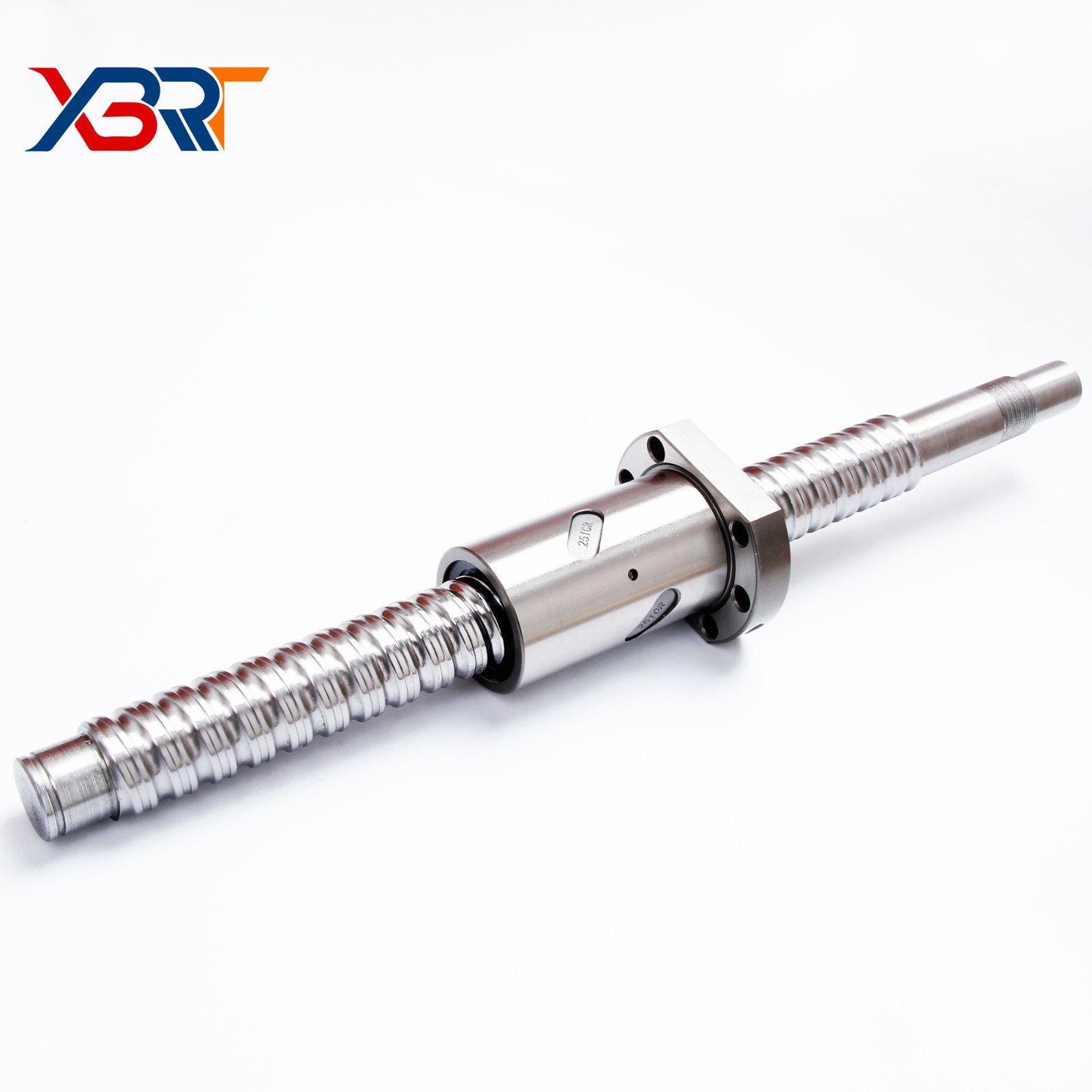

1.SFU(001)

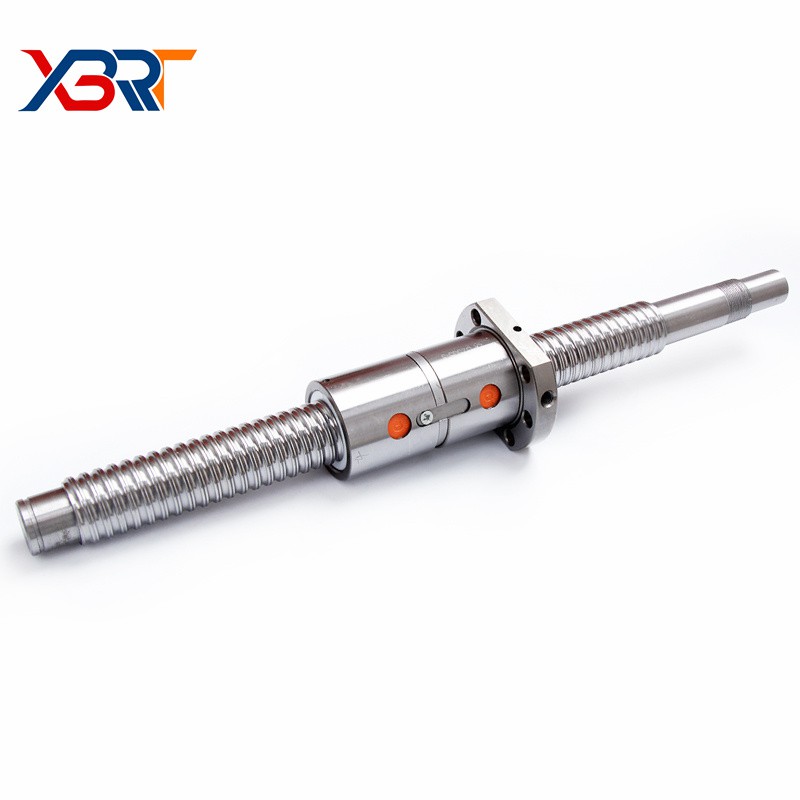

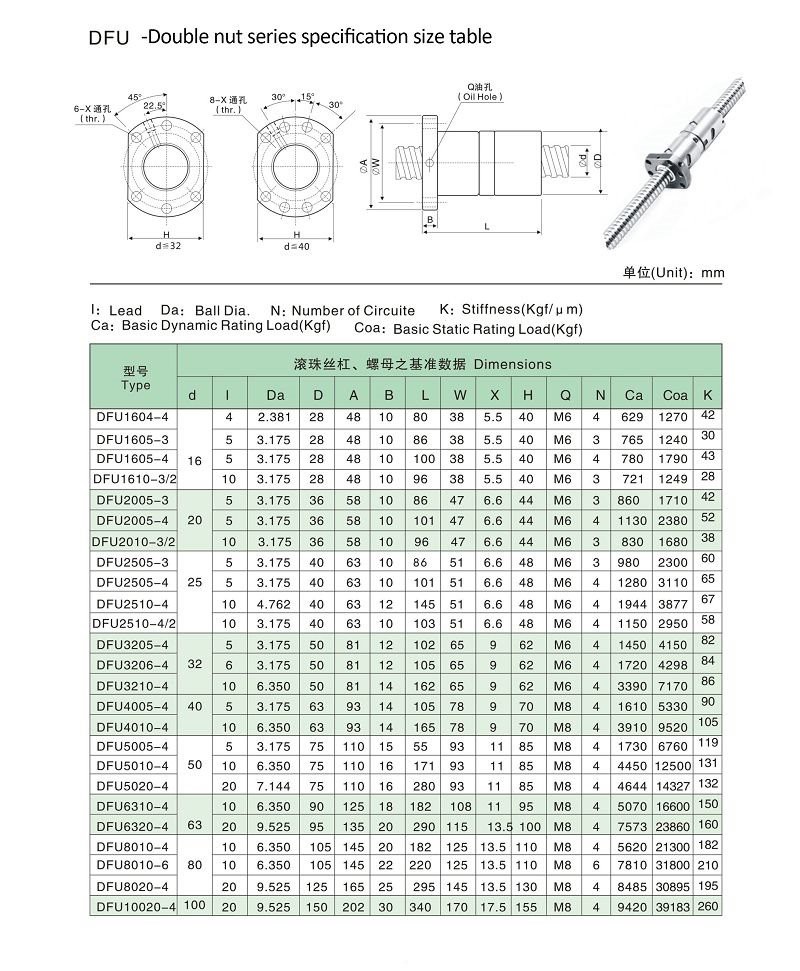

2.DFU(001)

3. Product feature and application

It has the features of good performance, low noise, high speed, zero backlash, long life. It is widely use in CNC machinery, precision machine, industrial machinery, electronic machinery, conveying machinery, aerospace industry.

4. Product details

Product Name	CNC machine ball screw
Main series	SFU, DFU
Drawing type	PDF, CAD, SolidWorks, picture
Ends machining	We can provide or do by yourself
Parts	Ends support, coupling, motor bracket are available
Linear guide	Available
Package	Plastic bag, air bubble film, wooden case
Delivery	By express, by air or by sea
Label	Can do according to customers’ demands

The side

5. Product qualification

All ball screw and nuts need to do 100% inspection during production and before shipment. If there is any problem, the goods must pick up and not send to customers. If you received any products with problem, please feel free to contact us, we will help to solve the problems.

6. Delivery, shipping and serving

Our sales department workers will provide professional service for make quotation, introduce the products and technology issues, and follow up the orders production. Delivery time is usually 5-30 days, please confirm with us the detail. If you have your own forwarder, we can ship to your forwarder demand sea port. If you do not have forwarder, we can help you.
