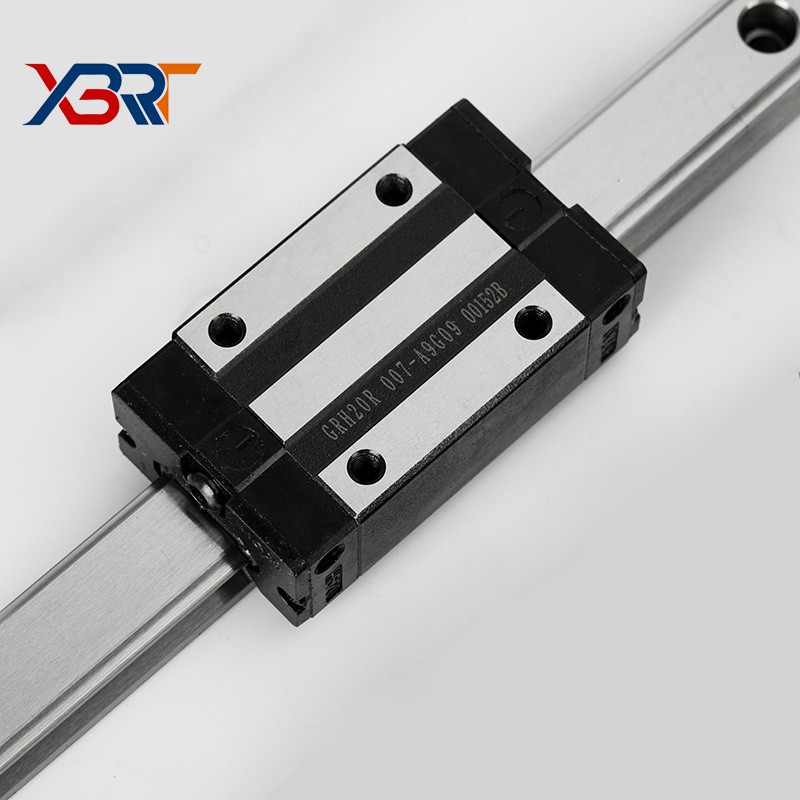

Precision Rail Guides
The accuracy of precision rail guides mainly depends on the geometric accuracy of the guide itself and the fit clearance of the guide. The fit clearance of the guide mainly depends on the structure type of the guide, the surface roughness, the stiffness of the guide and the influence of thermal deformation.
Description
The accuracy of precision rail guides mainly depends on the geometric accuracy of the guide itself and the fit clearance of the guide. The fit clearance of the guide mainly depends on the structure type of the guide, the surface roughness, the stiffness of the guide and the influence of thermal deformation.
1. Product introduction
The accuracy level is not simply the accuracy of a dimension, but the technical requirement level of multiple dimensions. Take the linear guide rail of HGR series as an example, its accuracy is divided into five levels: ordinary C, advanced H, precision P, ultra-precision SP and ultra-precision UP. Our precision rial guides accuracy rate is mainly H and P.
2. Product specification
Our precision rail guides now have the following items: HGR15, HGR20, HGR25, HGR30, HGR35, HGR45, HGR55. Please check attach detail dimensions for select items.
3. Product feature and application
HGR series linear guide rail has the main performance characteristics of high speed, high precision, and heavy load. It can be used for CNC machine tool manufacturers to develop high-end products to meet the requirements of key industries supported by the state, such as high-speed, high precision, heavy load and high-grade CNC machine tools used in automobile manufacturing, shipbuilding, wind power and nuclear power manufacturing, aerospace manufacturing.
4. Product details
|
Product Name |
Precision rail guides |
|
Precision rate |
mainly H and P |
|
Structure |
Block bearing and linear guide |
|
Surface maintain |
With rust-preventative oil |
|
cage type |
Plastic cage or steel cage |
|
length |
Can cut as customer’s demands |
|
Package |
Wooden box packing |
|
accessory |
Plastic caps and oil nipples |
|
surface hardness |
About 60-62 |
5. Product warranty
XBRT company provide customers with 12 months quality guarantee. Our products is 100% checn before make shipment. Please feel free to buy our products.
6. Delivery, shipping and serving
The delivery time is about 3 to 10 days for normal order. Goods can be ship by the customer’s confirm method, like by sea, by air, etc. We are offering quick quotation, order follow up service, after-sale service.
7. FAQ
7.1. Q: What’s your max length of linear guide?
A: Normally 4000mm length.
7.2 Q: Do you provide plastic caps for your linear guide?
A: Yes, we provide plastic caps according to linear guide quantity.
7.3 Q: What is the lead time of linear guide?
A: Normally 3-10 days, please confirm order with us.
7.4 Q: What is the brand of linear guide?
A: The brand is XBRT.
7.5 Q: Wonder if you accept small orders?
A: Yes we accept small orders. Feel free to contact us.
