20mm Linear Guide Rail

Name: 20mm Linear Guide Rail
Brand: Xingborui
SKU: 177209306

Lishui Xingborui company produce 20mm linear guide rail with bulk quantity in China. It has more than 100 workers to produce linear guide and ball screw with advanced technology and equipment.

Send Inquiry

Description

Lishui Xingborui company produce 20mm linear guide rail with bulk quantity in China. It has more than 100 workers to produce linear guide and ball screw with advanced technology and equipment.

1. Product introduction

HGR20 linear guide is with 20mm width, the height of linear guide and block is 30mm. This size is with mass production so price is economic in all items of the HGH and HGW series. It is widely use in miniaturized equipment, semiconductor equipment, medical equipment, IC manufacturing equipment, X-Y table.

2. Product specification

The max length of HGR20 can be 4000mm or 6000mm. If customers need any length, we can cut or connect to get the length you want. Normally one linear guide is with one or two block bearings, or can apply for the block bearings quantity customers need. There are HGH20CA, HGH20HA, HGW20CA and HGW20HA to apply for HGR20 linear guide.

1.HGH(001)

2.HGW(001)

3. Product feature and application

20mm linear guide rail with the following features: high precision, high rigidity, high load, low noise, high reliability, interchangeability. It is widely use in precision measuring and testing instruments, high-speed belt driving equipment, high-speed load shifting equipment, etc.

4. Product details

Product Name	20mm linear guide rail
Item	HGR20
square block	HGH20CA
Flange block	HGW20CA
Lengthen block	HGH20HA, HGW20HA
Width	20mm
Length	Max 4000mm or 6000mm
Color	Black, red black, green black
Weight	2.21kgs per meter

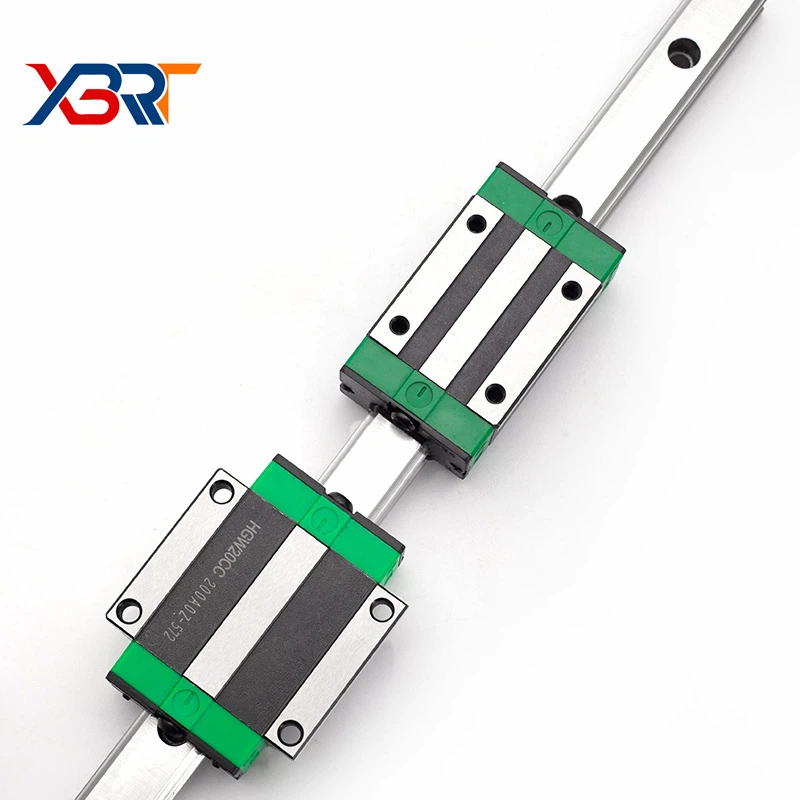

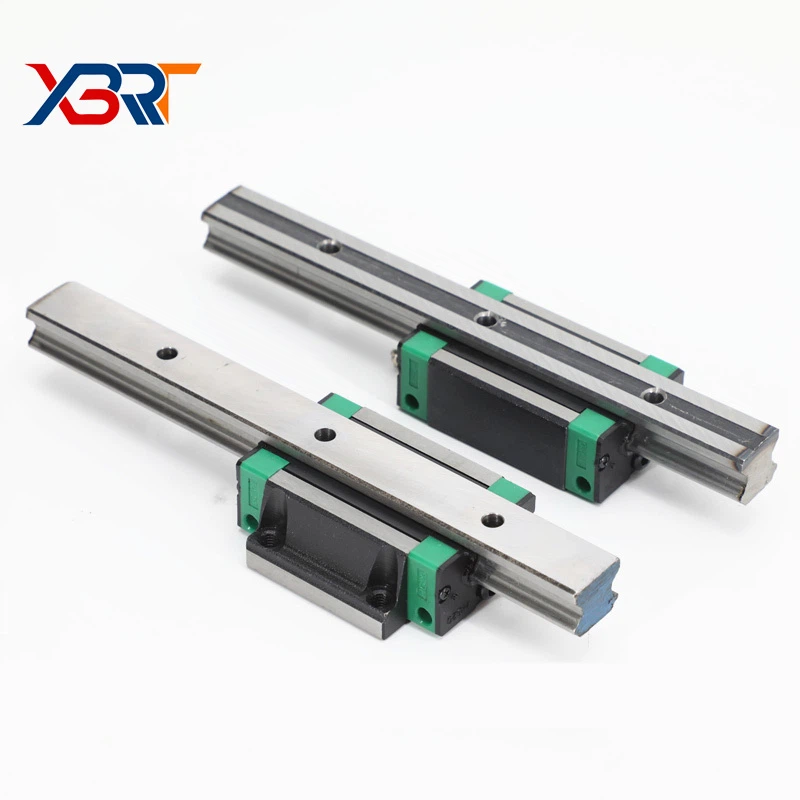

The side

5. Product qualification

Our linear guide rail is produced with three surface grinding machine which is imported from Taiwan. The straightness, concentricity, precision is measured by professional workers to ensure product quality. Our products are checked one by one before shipment.

6. Delivery, shipping and serving

Our factory has mass stock of linear guide and block bearings. So, we can ship normal orders quickly, usually 3-10 days. For orders with many items and quantity, please confirm with us for check the stock and lead time. We can take photos and videos if customers have needs. We have various of shipment methods such as by sea, by air, by express or by truck.
