Shaft End Support
video
Shaft End Support

Shaft End Support

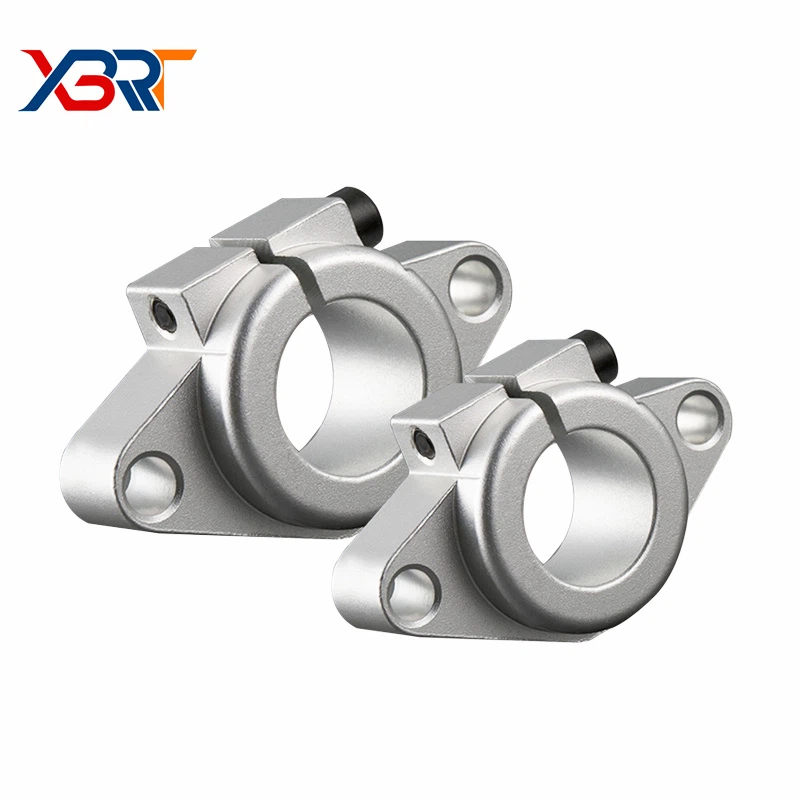

Shaft end support for optical shaft support, aluminum alloy fixed seat, used for fixing straight line shaft, and fixed with the above bolt, it is light in weight, high hardness, not easy to rust, fine grinding, wear-resistant and anticorrosive.

Description

Shaft end support for optical shaft support, aluminum alloy fixed seat, used for fixing straight line shaft, and fixed with the above bolt, it is light in weight, high hardness, not easy to rust, fine grinding, wear-resistant and anticorrosive.


Our products are in strictly accordance with international standards production, and with high quality, widely used in textile machinery, printing machinery, power tools, medical machinery, precision machine tools, electrical cutting, automatic recorder and office equipment and other fields.

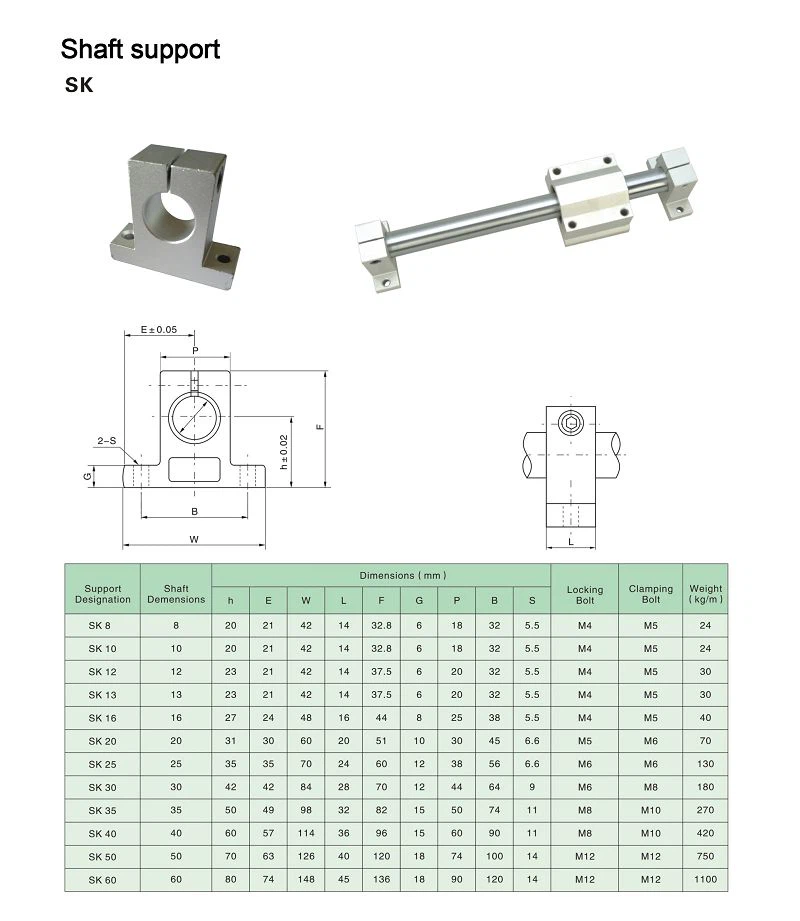

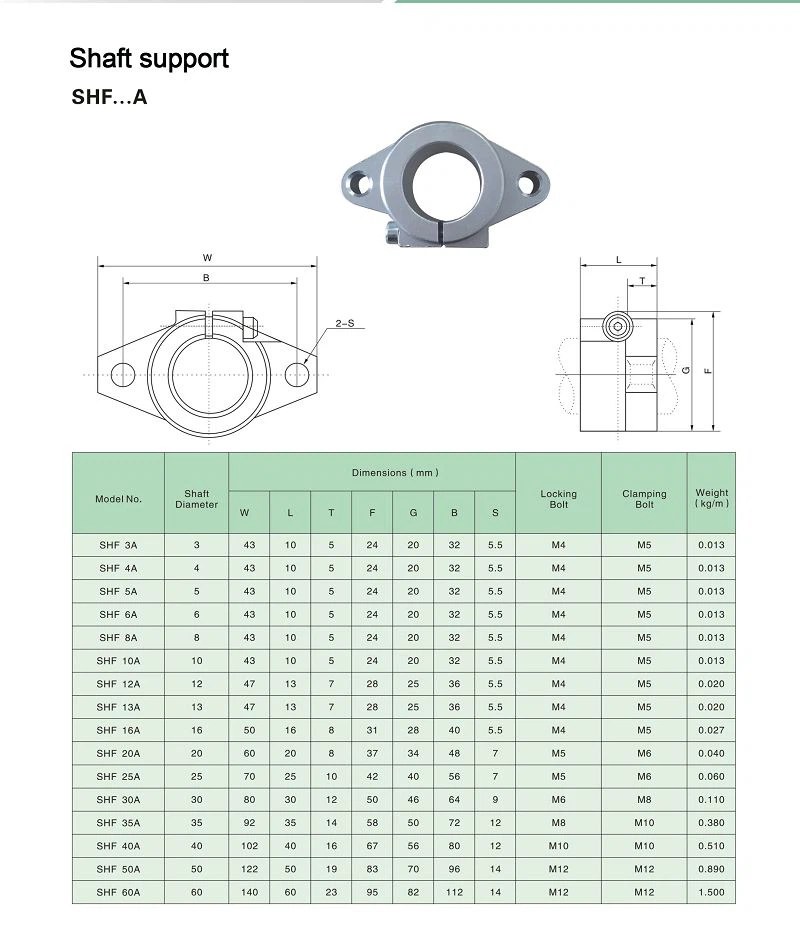

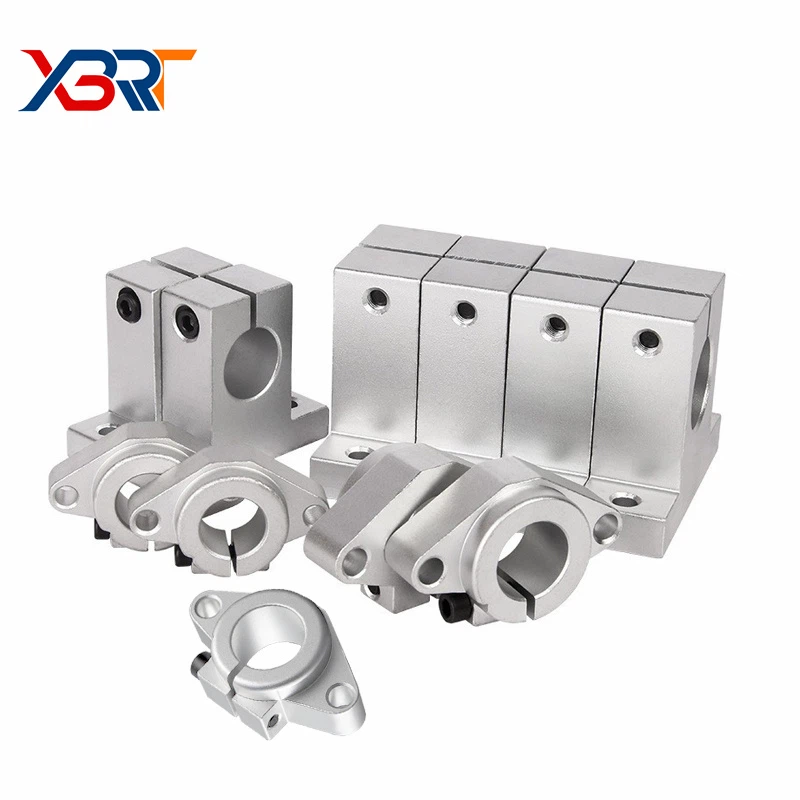

There are 2 series of shaft end support, SK and SHF. Their appearance and shape are different, and customers can use different seats according to their own requirements.

The sideThe side

The sideThe side

Product Information

Product Name

Shaft end support

Material

Aluminum alloy

Model No.

SK8,SK10,SK12,SK13,SK1,SK20,SK25,SK30,SK35,SK40,SK50,SK60,SHF3A,SHF4A,SHF5A,SHF6A,SHF8A,SHF10A,SHF12A,SHF13A,SHF16A, SHF20A, SHF25A,SHF30A, SHF35A,SHF40A,SHF50A, SHF60A

Feature

Easy to assemble, high hardness, not easy to rust, fine grinding, wear-resistant and anticorrosive

Product Package

1.Plastic bag with box case or wooden case.

2. According to our customer's request.

Delivery time

3-7 days for sample order, 7-30 days for bulk order.

Depends on the actual shipping situation.


FAQ

1.Q: Are you trading company or manufacturer ?

A: We are factory. And we have rich experience in foreign trade.


2.Q:Do you have linear shaft?

A:Yes, please email us.


3.Q: What are the way of the transportation?

A: Depending upon the weight of goods ,we can transfer by express ,by air and by sea shipping .


4.Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
