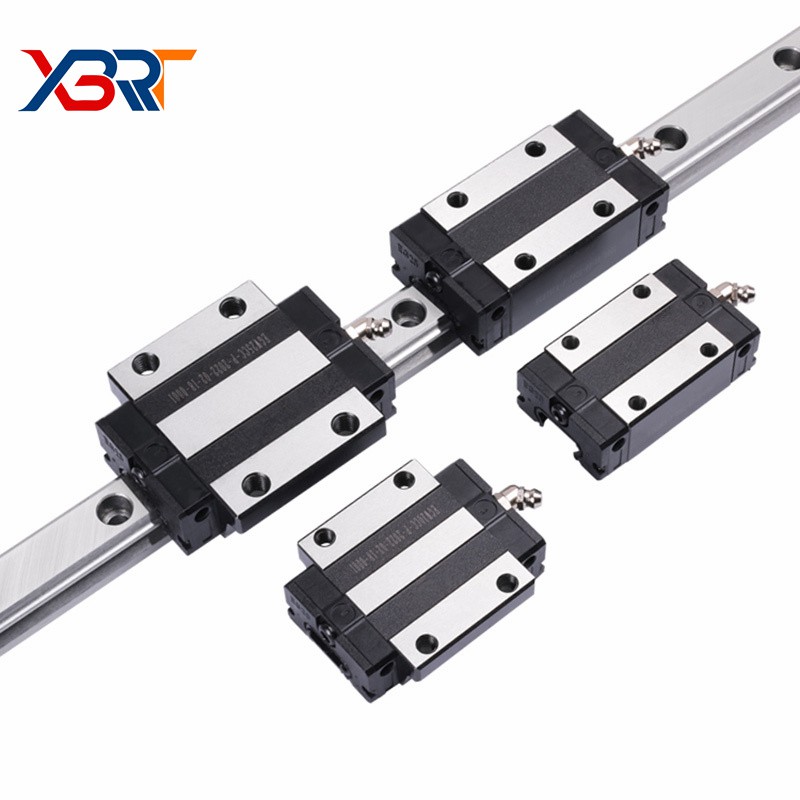

EG Series Linear Guide
Linear guide is divided into high assembly and low assembly. The combination height of the slider determines high assembly or low assembly, and the determining factor depends on the allowable height of the use plane. EG Series Linear Guide is low assembly series which use in the machines which have limited height.
Description
Linear guide is divided into high assembly and low assembly. The combination height of the slider determines high assembly or low assembly, and the determining factor depends on the allowable height of the use plane. EG Series Linear Guide is low assembly series which use in the machines which have limited height.
1. Product introduction
The size and specifications of high assembly and low assembly linear guide are the same, but the slider height is different. The high assembly means that the guide rail and the slider are assembled, and the height is relatively higher for the low assembly. Slider high and low assembly refers to the height of the slider, or the combined height of the slider and guide rail.
2. Product specification
EG Series Linear Guide have the following items: EGH15SA, EGH15CA, EGH20SA, EGH20CA, EGH25SA, EGH25CA, EGH30SA, EGH30CA. The difference of EGH…SA and EGH…CA is EGH…SA have two holes, while EGH…CA have four holes. And the length of both block bearings is different.
3. Product feature and application
The low-assembly linear guide uses four rows of steel balls to bear the load design, so that it has the characteristics of high rigidity and high load, and has the four-direction load characteristics, and the function of automatic self-aligning, which can absorb the assembly error of the mounting surface and obtain the demand of high precision. Combined with reducing the height of the combination and shortening the length of the slider, it is very suitable for high-speed automation industry machinery and small equipment with space requirements.
4. Product details
|
Product Name |
EG Series Linear Guide |
|
Material |
Bearing steel, plastic |
|
Cage |
Plastic cage or steel cage |
|
Precision |
High precision |
|
EGH |
EGH15CA, EGH20CA, EGH25CA, EGH30CA |
|
EGW |
EGW15CA, EGW20CA, EGW25CA, EGW30CA |
|
Package |
Plastic bag, carton, wooden box |
|
Lead time |
Have bulk stock, can send goods within 3-10 days |
|
Quality guarantee |
12 months |
5. Product qualification
With 100% inspection for all products before shipment, our products are with good quality and high precision. If you want to see the products by photos or videos, we are glad to provide.
6. Delivery, shipping and serving
Normally we can ship goods within 3 to 10 days for we have bulk quantity stock in our factory. If you have large quantity order, please contact us for confirm the detail delivery time. We can ship goods according to customers demands for by sea or express or ship directly to your forwarder’s warehouse.
7. FAQ
7.1. Q: What are your processing equipment?
A: CNC machining center, CNC lathe, milling machine, engraving machine, injection molding machine, extruder, molding machine.
7.2 Q: Can you help assembling the product after it is made?
A: It's okay.
7.3 Q: Can injection products be surface treated? What are the surface treatments?
A: It is ok. Surface treatment: electroplating, black coated, etc.
7.4: Are you trading company or manufacturer?
A: We are factory. can produce some type bearings, other type bearing can provide.
7.5 Q: How long is your delivery time?
A: 3-5 days if bearing in stock. or 7-20 days if not in stock, according to quantity.
