Linear Shaft with Bottom Support

Send Inquiry

Description

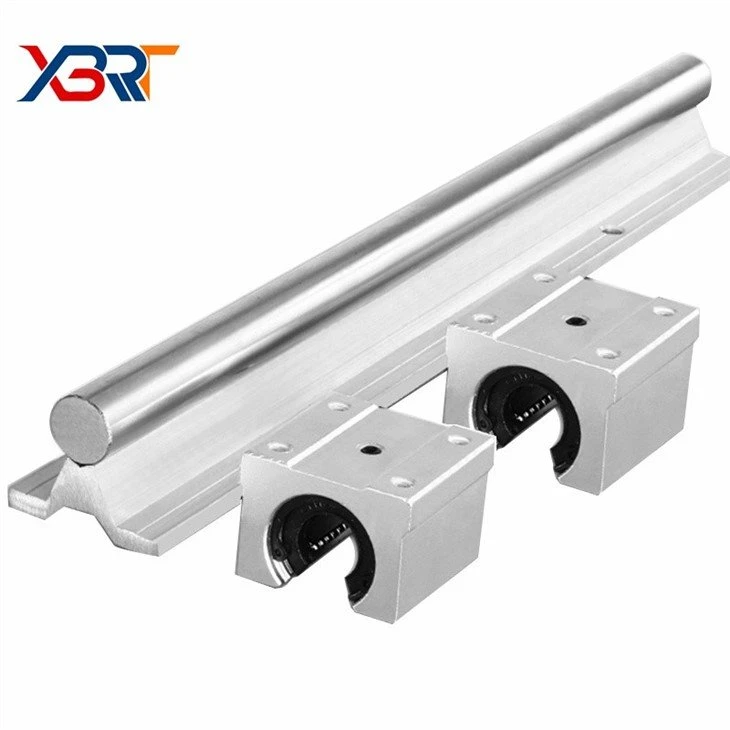

Linear shaft with bottom support is a sliding unit composed of box linear bearing, high hardness shaft and anti-deflection aluminum rail. Round rod is grinded, after high-frequency quenching, smooth surface, high hardness. The bottom of the aluminum rail bracket is provided with a screw countersunk hole, and the cylindrical head hexagon inner screw is fastened together with the screw hole on the bottom of the cylinder.

The end face of the guide rail can be machined, the guide rail can be butt, the longest guide rail up to 6 meters. Linear shaft with bottom support have been standardized, convenient assembly, slide block and slide can be supplied separately. It is suitable for machine tools, engraving machines, testing instruments and so on.

The side

SBR(001)

TBR(001)

Product Information

Product Name	linear shaft with bottom support
Material	Carbon steel、Aluminum alloy
Model No.	SBR12、SBR16、SBR20、SBR25、SBR30、SBR35、SBR40、SBR50、TBR16、TBR20、TBR25、TBR30
Feature	Simple structure, low cost, lightweight, corrosion resistance, easy to exchange, easy to assemble, cost-effective
After-sales service	We have technology department to provide quality assurance services and technology service. If you have any questions, please feel free to contact us and provide the picture and vedio. We will solve the problem for you as soon as possible.
Product Package	1.Plastic bag with box case or wooden case. 2. According to our customer's request.
Delivery time	3-7 days for sample order, 7-30 days for bulk order. Depends on the actual shipping situation.
